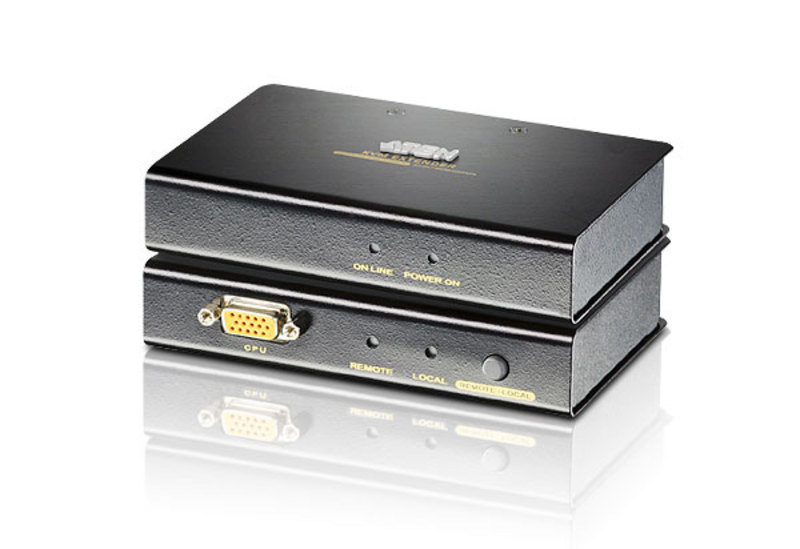

CE350 Aten PS/2 VGA/Audio Cat 5 KVM Extender (1600 x 1200@150m)

Description The CE350 a PS/2 based KVM Extender with automatic signal compensation and RS-232 serial functionality allows access to a computer system from a remote PS/2 console (PS/2 keyboard, monitor, and PS/2 mouse). Because it allows access to a computer system from a remote console, the CE350 is perfect for use in any type of installation where you need to place the console where it is conveniently accessible, but you want the system equipment to reside in a safe location – away from the dust and dirt of the factory floor, or the harsh environmental influence of a construction site, for example. This allows users to deploy system equipment over large distances. FeaturesSpecificationsDiagramPackage Contents Local and Remote Units connect at distances up to 150 m using Cat 5e cable Adjustable gain control – automatically and manually adjust signal strength to compensate for distance Dual console operation – control your system from both the local and remote keyboard, monitor, and mouse consoles Built-in ASIC for greater reliability and compatibility Auto Signal Compensation (ASC) and storage of settings RS-232 serial ports – connect to a serial terminal, or serial devices such as touchscreens and barcode scanners (Baud Rate up to 115200 bps) Audio Enabled – supports stereo speakers and microphone Pushbutton operating mode selection (Local Unit only) – select between Local and Auto operating modes, with the press of a single button Built-in 8KV/15KV ESD protection (Contact voltage 8KV; Air voltage 15KV) and 2KV surge protection Superior video quality – 1920 x 1200@60Hz(30 m), 1600 x 1200@60Hz(150 m) Superior Audio – no loss in audio quality at 150 m Supports Wide Screen formats * Supports VGA, SVGA, SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200) and multisync monitors; local monitor supports DDC; DDC2; DDC2B Hot pluggable Rack mountable Easy to install – no software required – connecting cables to the devices is all it takes* The EDID data for a widescreen is sent from the local video output port. For widescreen modes and displays connect the monitor to the local video output port or use an ATEN EDID emulator. Function CE350L CE350R Connectors Console Ports 1 x 6-pin Mini-DIN Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Green) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) 1 x 6-pin Mini-DIN Female (Purple) 1 x HDB-15 Female (Blue) 1 x 6-pin Mini-DIN Female (Green) 1 x Mini Stereo Jack Female (Green) 1 x Mini Stereo Jack Female (Pink) KVM Ports 1 x SPHD-17 Female (Yellow) 1 x Mini Stereo Jack (Green) 1 x Mini Stereo Jack (Pink) N/A RS-232 1 x DB-9 Female (Black) 1 x DB-9 Male (Black) Unit To Unit 1 x RJ-45 Female (Black) 1 x RJ-45 Female (Black) Power 1 x DC Jack 1 x DC Jack LEDs Local 1 (Green) N/A Remote 1 (Green) 1 (Red) Link N/A 1 (Orange) Picture Compensation N/A 1 (Blue) Pushbuttons Operating Mode Selection 1 x Pushbutton N/A Emulation Keyboard / Mouse PS/2 PS/2 Video 1920 x 1200 @ 60Hz (30 m); 1600 x 1200 @ 60Hz (150 m ); DDC, DDC2, DDC2B 1920 x 1200 @ 60Hz (30 m); 1600 x 1200 @ 60Hz (150 m ); DDC, DDC2, DDC2B Power Consumption DC5.3V:2.87W:18BTU DC5.3V:4.85W:26BTU Environmental Operating Temperature 0 – 50°C 0 – 50°C Storage Temperature -20 – 60°C -20 – 60°C Humidity 0-80% RH, Non-condensing 0-80% RH, Non-condensing Physical Properties Housing Metal Metal Weight 0.50 kg ( 1.1 lb ) 0.50 kg ( 1.1 lb ) Dimensions (L x W x H) 20.20 x 8.64 x 2.50 cm (7.95 x 3.4 x 0.98 in.) 20.20 x 8.64 x 2.50 cm (7.95 x 3.4 x 0.98 in.) Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. 1x CE350L PS/2 KVM Extender (Local Unit) 1x CE350R PS/2 KVM Extender (Remote Unit) 1x Custom KVM Cable (VGA, PS/2, Audio; 1.8m/6ft) 2x Power Adapters 1x Mounting Kit 1x User Instructions
