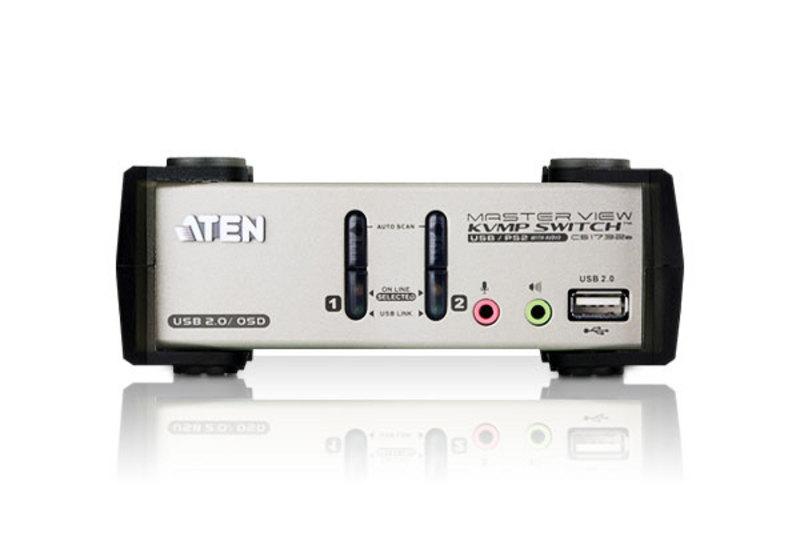

CS1732B Aten 2-Port USB & VGA KVMP Switch Bundle

Description The CS1732B is 2-port KVM switch combined with a 2-port USB 2.0 hub. As a KVM switch, it allows users to access two computers from a single keyboard, monitor, and mouse console. There are four methods to obtain instant access to any computer in your installation: Pushbuttons, Hotkeys, OSD, and mouse. FeaturesDiagramSpecificationsPackage Contents 2-port KVM switch with USB 2.0 support and 2.1 surround sound audio One console controls two computers and two additional USB devices 2-port USB 2.0 hub built in USB 2.0 compliant Dual interface – supports computers with PS/2 or USB keyboard and mouse configurations Audio enabled – full bass response provides a rich experience for 2.1 surround sound systems Console audio ports on front panel for easy access – ideal for IP phone users Independent switching of KVM, USB, and Audio focus Superior video quality; 2048 x 1536; DDC2B Supports widescreen resolutions Computer selection via front panel pushbuttons, multilingual OSD (On Screen Display), hotkeys and mouse Multiplatform support – Windows , Mac, and Sun Console mouse port emulation / bypass feature supports full mouse driver and multifunction mice Video DynaSync™ – stores the console monitor’s EDID (Extended Display Identification Data) to optimize display resolution Complete keyboard emulation for error-free booting Sun/Mac keyboard support and emulation* Auto Scan Mode for monitoring all computers LED Display for easy status monitoring Easy installation no software required Firmware upgradeable*1.PC keyboard combinations emulate Sun/Mac keyboards2.Sun/Mac keyboards only work with their own computers Computer Connections 2 Port Selection OSD; Hotkeys; Pushbuttons; Mouse Connectors Console Port Keyboard 1 x USB Type A Female (Black) Video 1 x HDB-15 Female (Blue) Mouse 1 x USB Type A Female (Black) Speaker 2 x Mini Stereo Jack Female (Green) Mic. 2 x Mini Stereo Jack Female (Pink) KVM Port Keyboard 2 x SPHD-15 Female (Yellow) Video Mouse Speaker 2 x Mini Stereo Jack Female (Green) Mic. 2 x Mini Stereo Jack Female (Pink) Firmware upgrade 1 x 4-conductor 3.5mm Jack (Black) Power 1 x DC Jack USB Hub 2 x USB Type A Female (White) Switches Selected 2 x Pushbutton LEDs On Line/ Selected 2 (Orange) USB Link 2 (Green) Emulation Keyboard / Mouse PS/2; USB Video 2048 x 1536 @ 60Hz; DDC2B Scan Interval 1-255 seconds (Default: 5 sec.) Power Consumption DC5.3V, 3.1W Environment Operating Temp. 0-50°C Storage Temp. -20-60°C Humidity 0-80% RH, Non-condensing Physical Properties Housing Metal Weight 0.55 kg Dimensions ( L x W x H ) 13.98×8.80×5.55cm * The specification and pictures are subject to change without notice. * All trademarks and logos are the properties of their respective holders. 1x 2-Port USB 2.0 KVMP™ Switch 2x Custom USB KVM Cable Sets 2x OSD/Hotkey Stickers 1x Firmware Upgrade Cable 1x Power Adapter 1x User Instructions
